Plant List
A comprehensive range of the latest CNC machines to manufacture precision turned parts.
We have continually invested in the latest technology CNC Machines in order to stay at the forefront of subcontract manufacturing. Our capacity consists of the latest CNC Turning and Milling machines, Wire EDM and now an Automated cell including bar feeder and robotic RoboJob arm system. This allows us to offer the complete subcontract turned part and machined component package.
See below for a comprehensive list of our plant and CNC capabilities.
Plant List

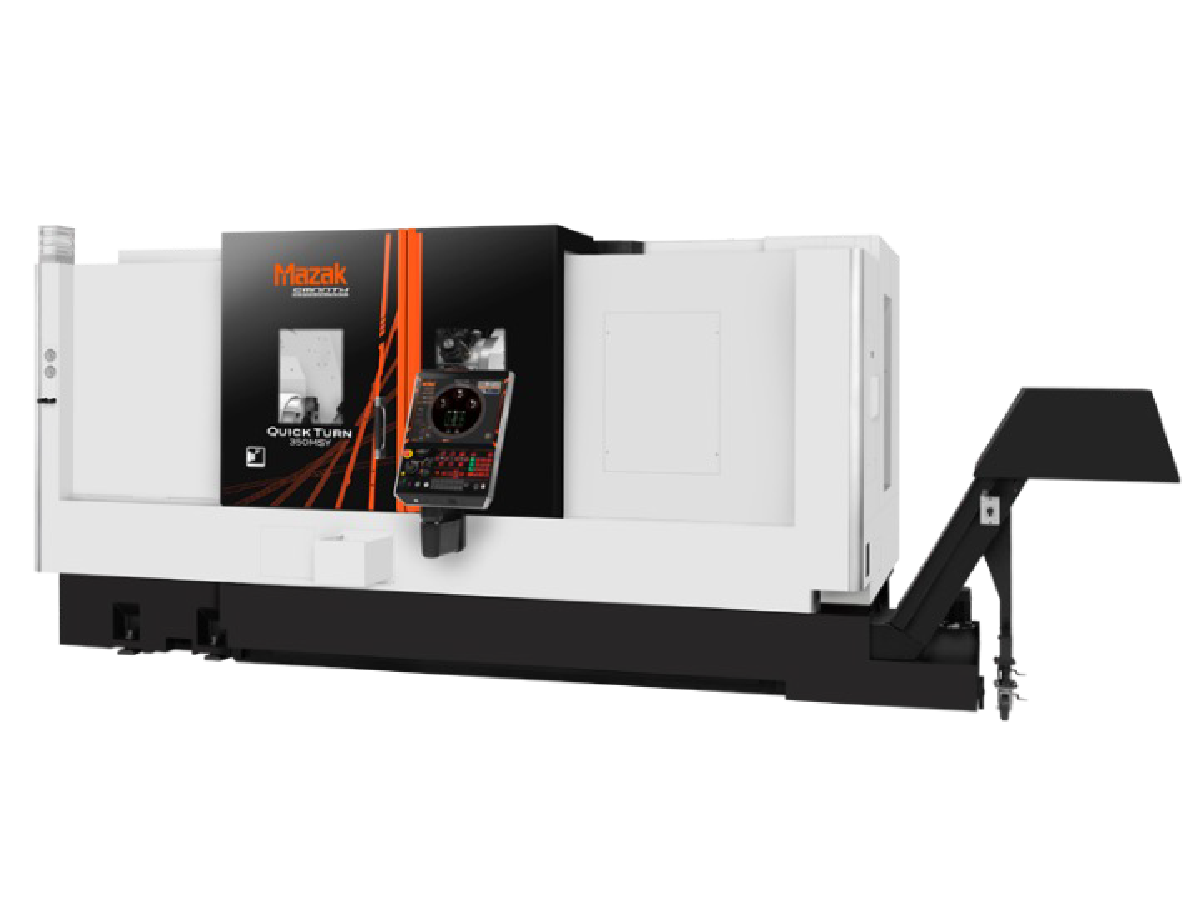

Mazak 350 MY
Features
- Specifications designed to meet your production requirements
- Milling function and Y-axis
- Advanced features of the Mazak SmoothG CNC
- Parts Catcher
1250mm Bed (Universal)
Values

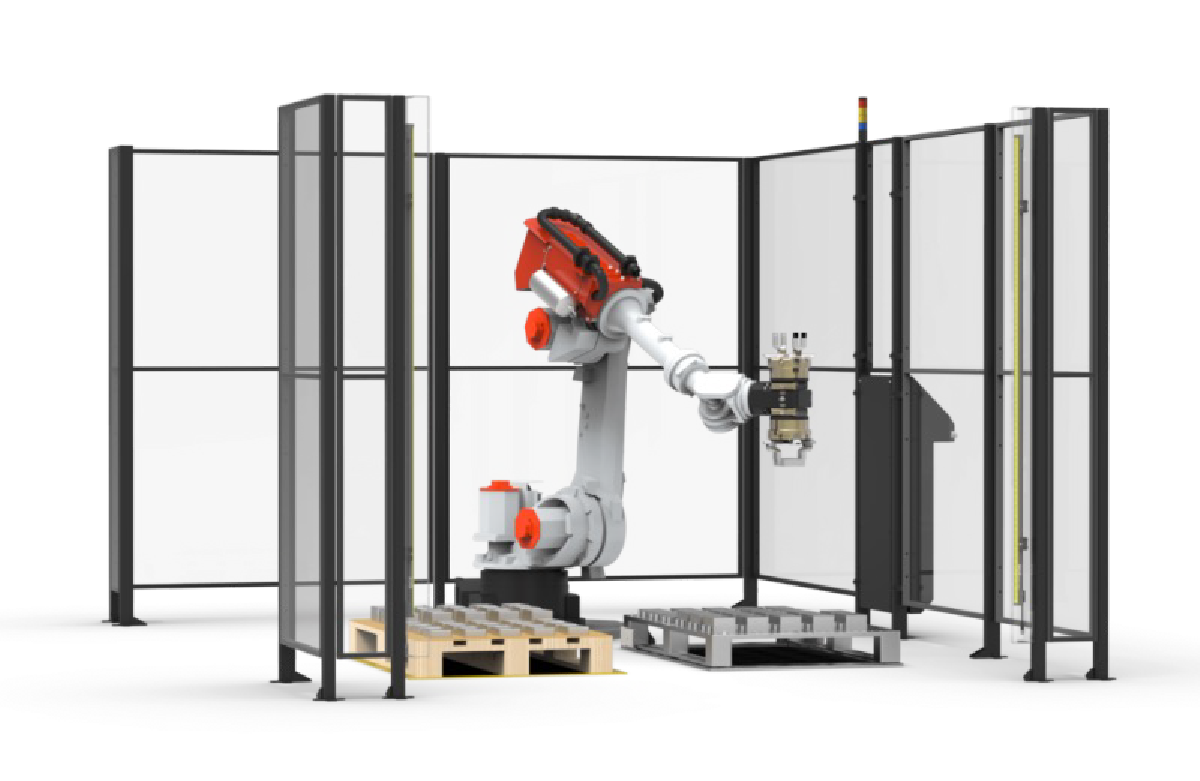

RoboJob Pallet-Load Double
RoboJob Pallet-Load Double offers two pallet positions; one pallet for raw components and one pallet for finished components or two pallets for raw material with finished parts returned to the same position.
Features
- Medium sized runs and/or medium•sized workpieces
- 2 pallet positions
- 1 configurable pallet for rough pieces
- 1 configurable pallet for finished pieces
- Higher capacity with the option of stacking the workpieces
- 2 standard pallet sizes

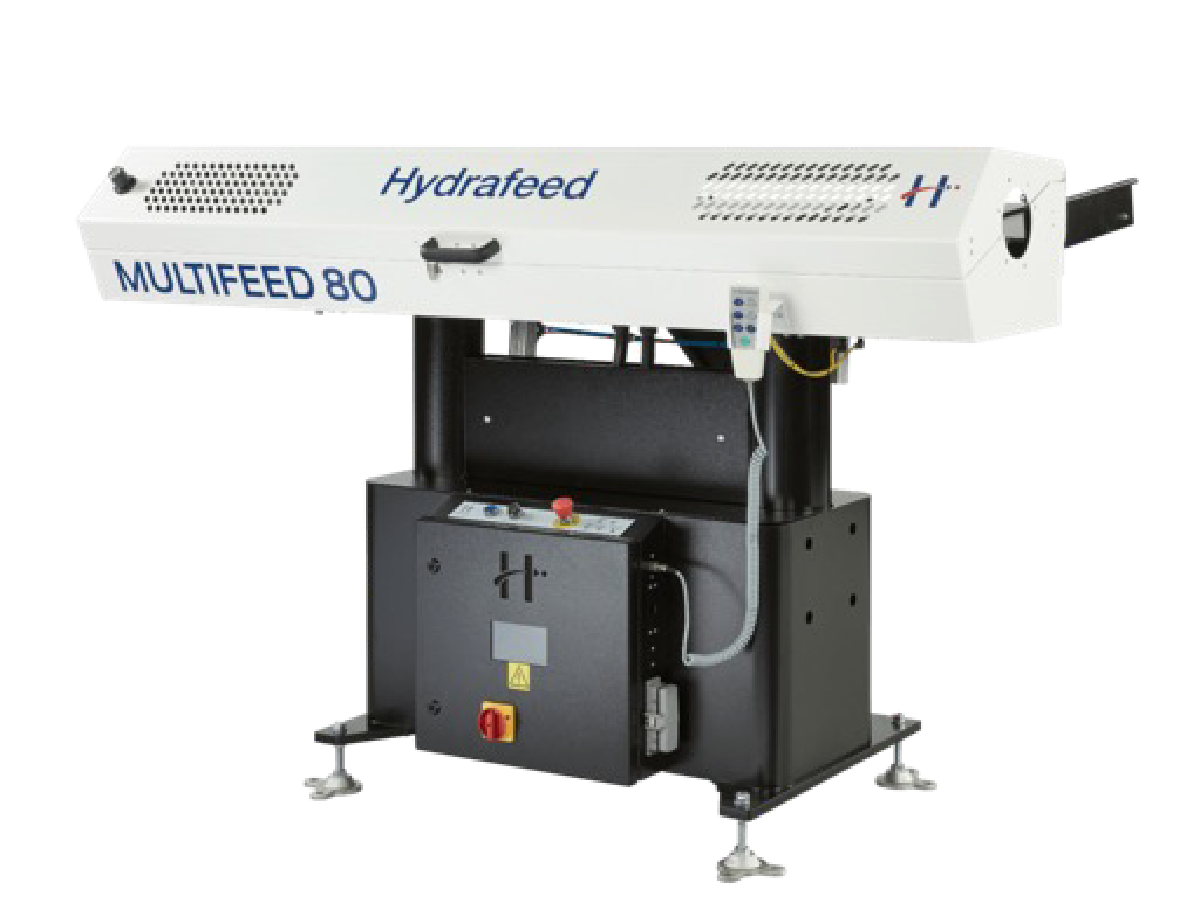

Hyrdrafeed Multifeed 80
Technical Specifications
Values

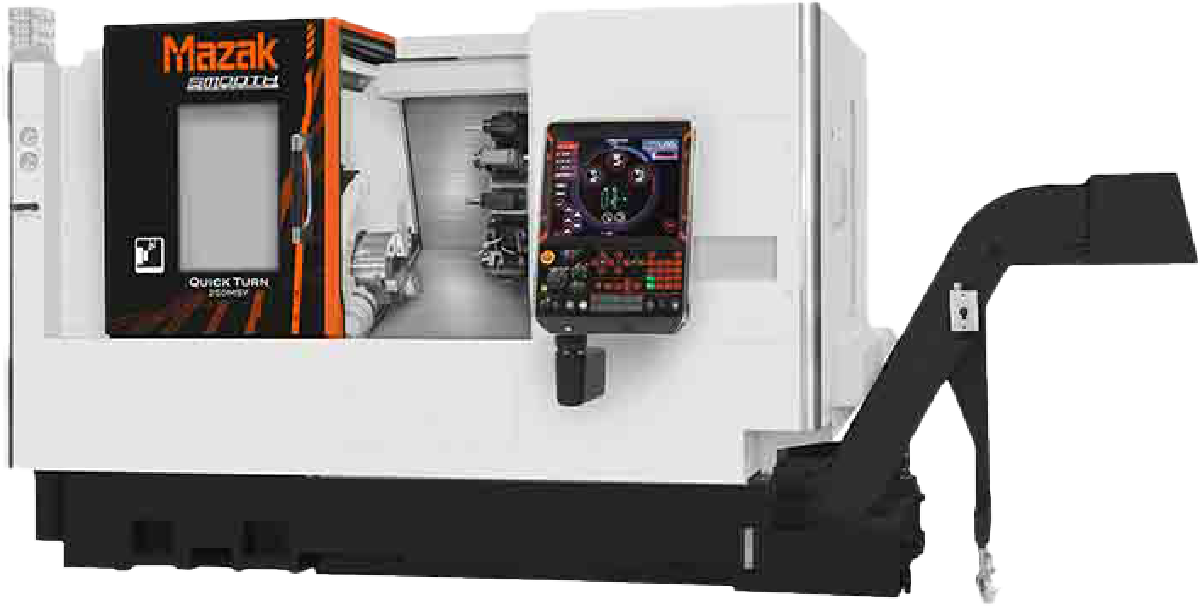

Mazak 250 MY
Features
- Specifications designed to meet your production requirements
- Milling function and Y-axis
- Advanced features of the Mazak SmoothG CNC
1000mm Bed (Universal)
Values

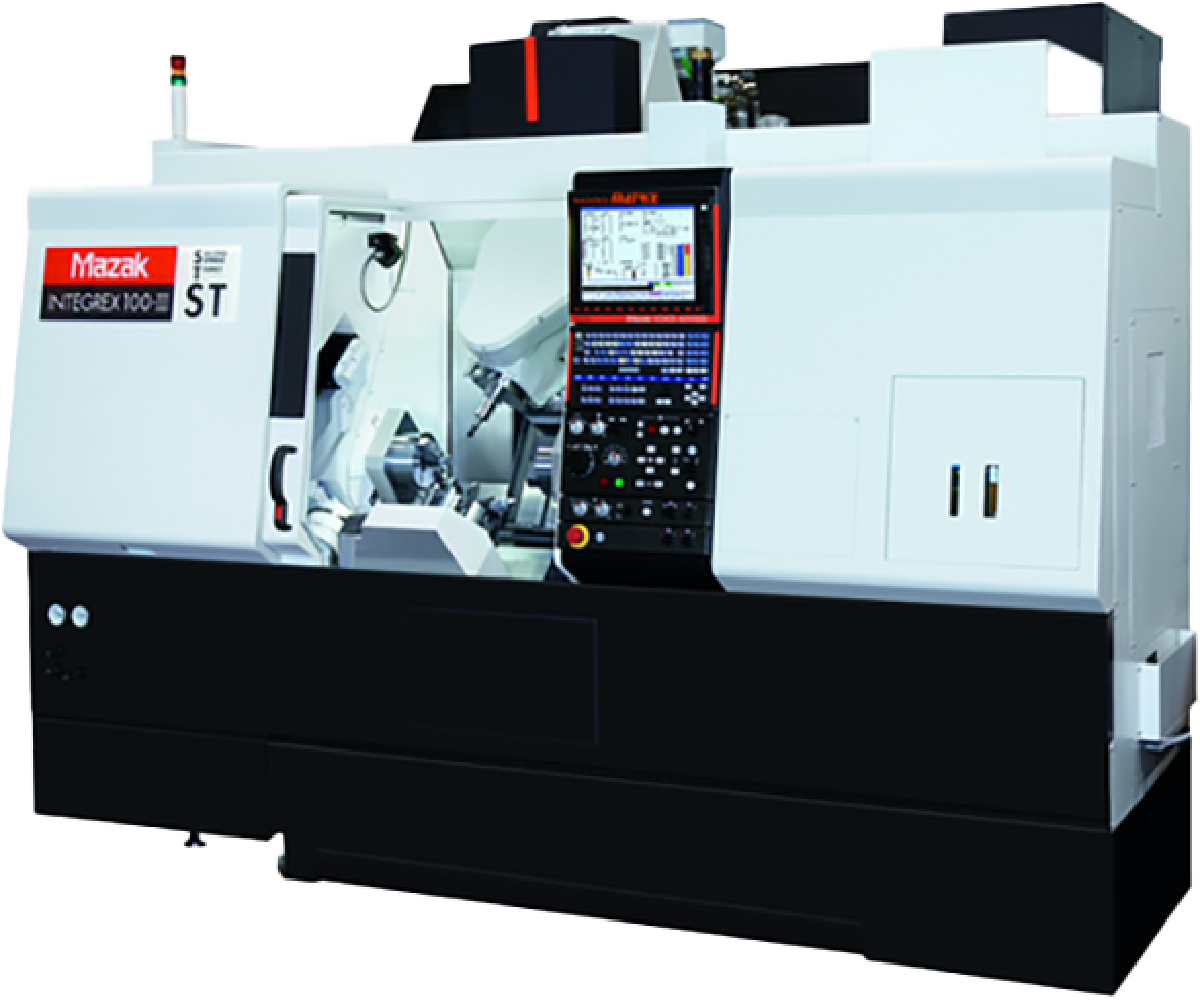

Mazak Integrex 100IV
Technical Specifications
Values

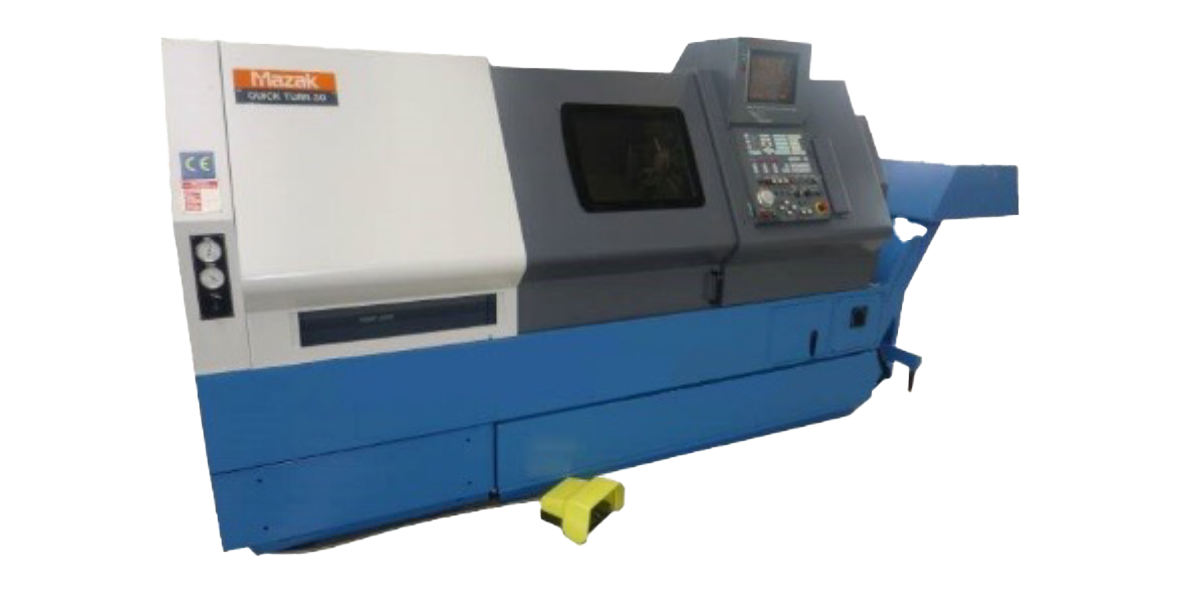

Mazak QT30
Features
- Mazatrol Tplus
- Chuck Size 10" Hydraulic
- Maximum Cutting Diameter 318mm/12.5"
- Maximum Cutting Length 1000mm/39.4"
- Maximum Swing:508mm/ 20"
- Number of Turret Positions: 16 Turret Positions
- Bar Work Capacity : 76.2mm/3"

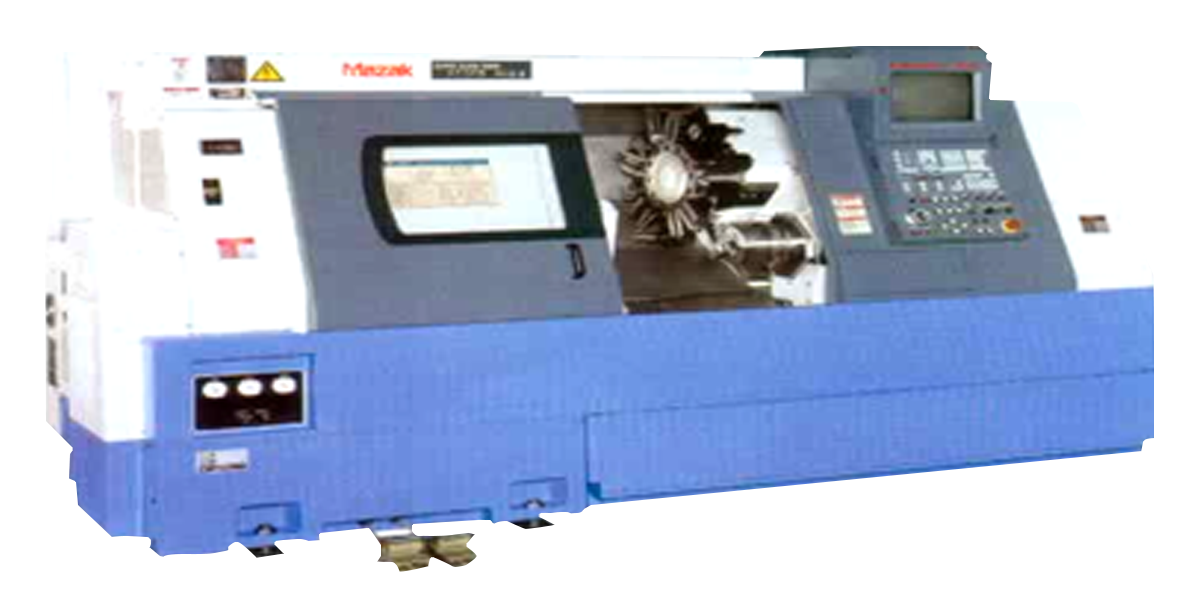

Mazak QT40
Features
- Maximum Swing Over Bed:510mm / 20.08"
- 15.5” Hydraulic Chuck
- Maximum Swing Over Carriage:400mm / 15.75"
- Standard Machining Diameter:320mm / 12.6"
- Max Machining Diameter:400mm / 15.75"
- Maximum Turning Length:1500mm / 59.06"
- Bar Work Capacity :152.4mm / 6”
- Hydraulic Steady :20-165mm

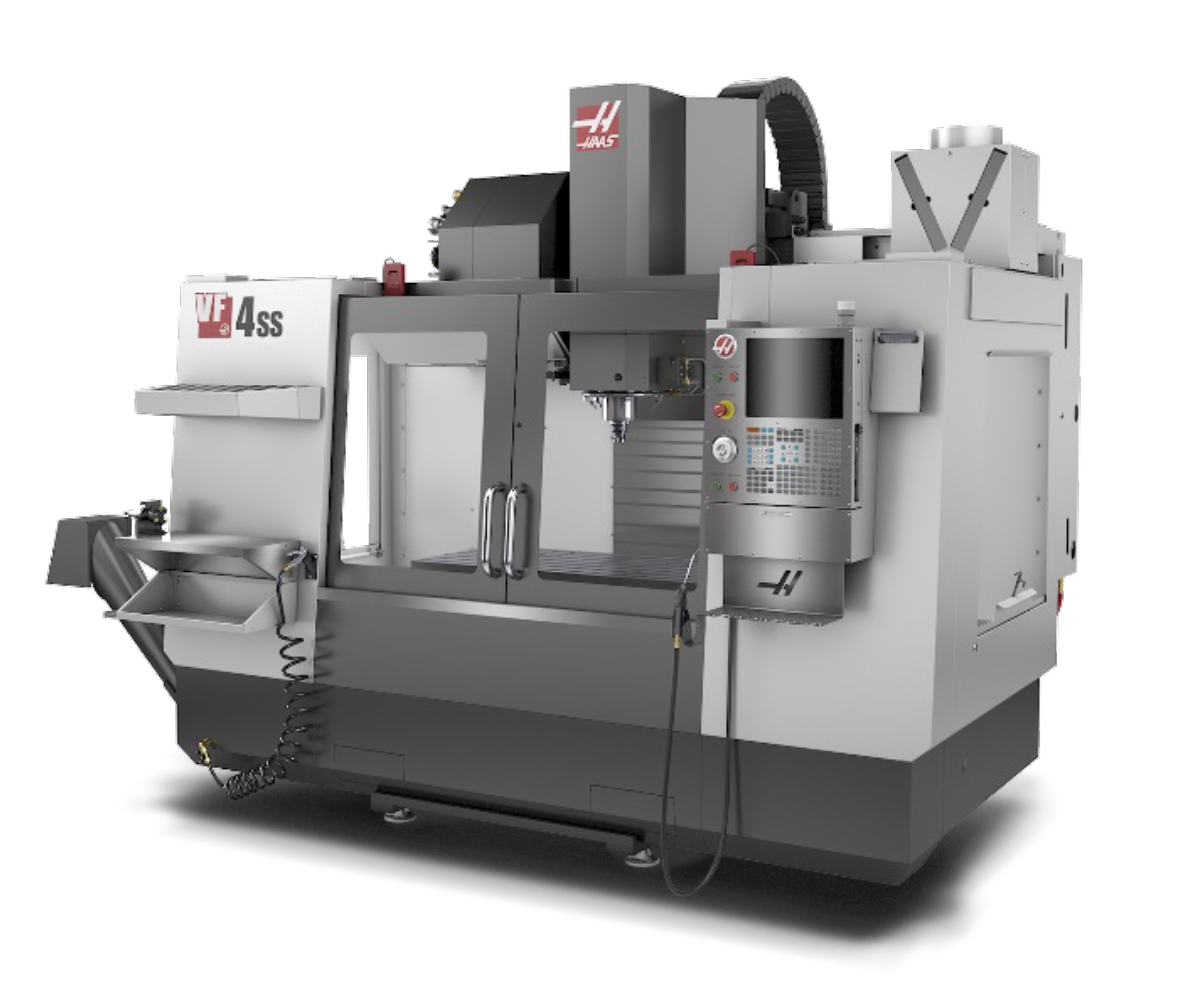

Haas VF-4SS
The Haas VF-4SS is a super-speed vertical machining center with the following specifications:
Features
- Work envelope: 50" x 20" x 25" (1270 x 508 x 635 mm)
- Spindle taper: 40
- Spindle drive: 30 hp (22.4 kW) vector drive
- Spindle speed: 12,000 rpm
- Tool changer: High-speed 24+1 side-mount
- Rapids: 1400 ipm (35.6 m/min)
- Max Weight on Table (evenly distributed): 794kg
- HRT210 4th Axis
- Renishaw Probing

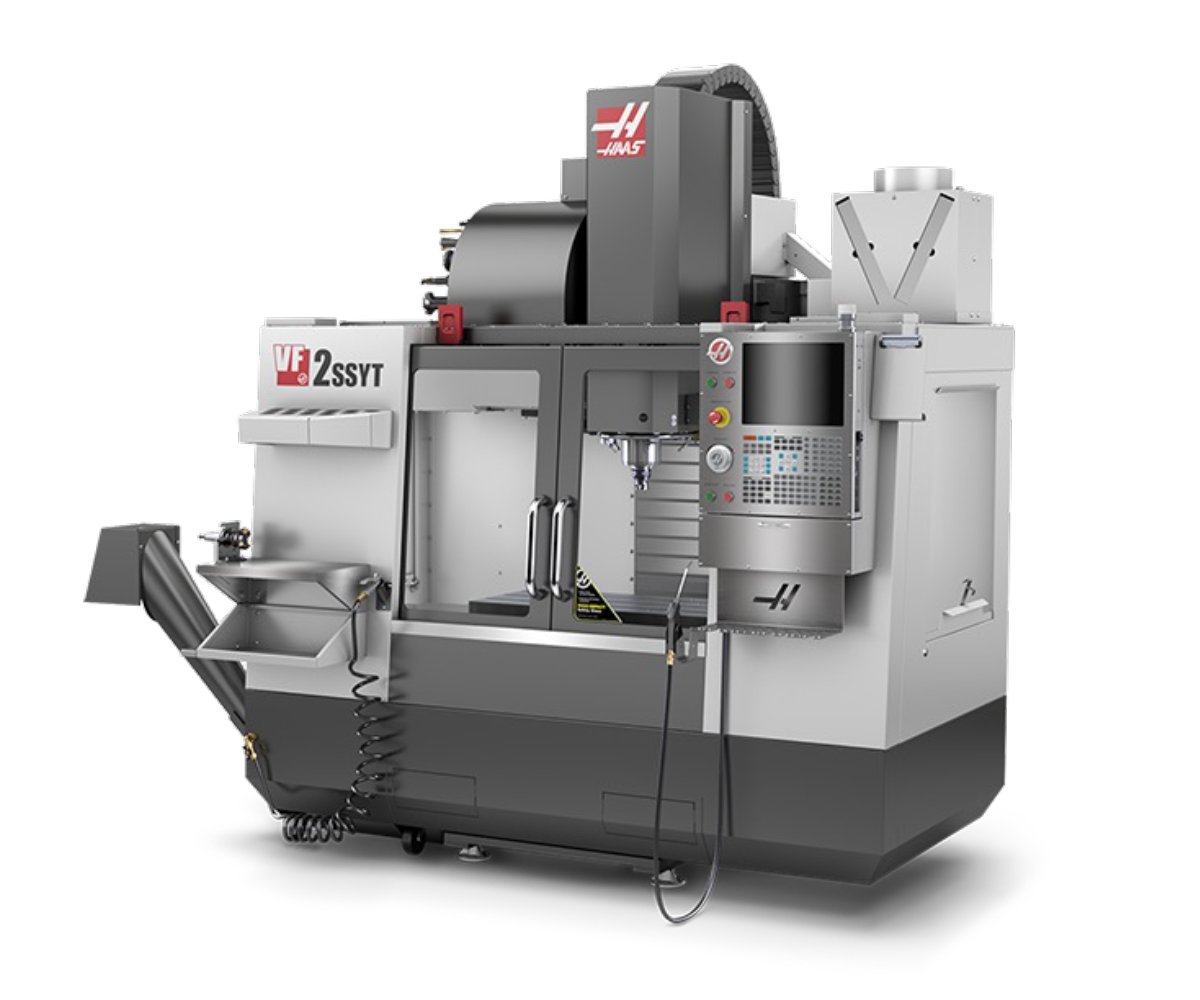

Haas VF-2SSYT
The Haas VF-2SSYT is a super-speed vertical machining center with the following specifications:
Features
- Work envelope: 30" x 20" x 20" (762 x 508 x 508 mm)
- Spindle taper: 40
- Spindle drive: 30 hp (22.4 kW) vector drive
- Spindle speed: 12,000 rpm
- Tool changer: High-speed 24+1 side-mount
- Rapids: 1400 ipm (35.6 m/min)
- Max Weight on Table (evenly distributed): 680kg
- HRT210 4th Axis
- Renishaw Probing

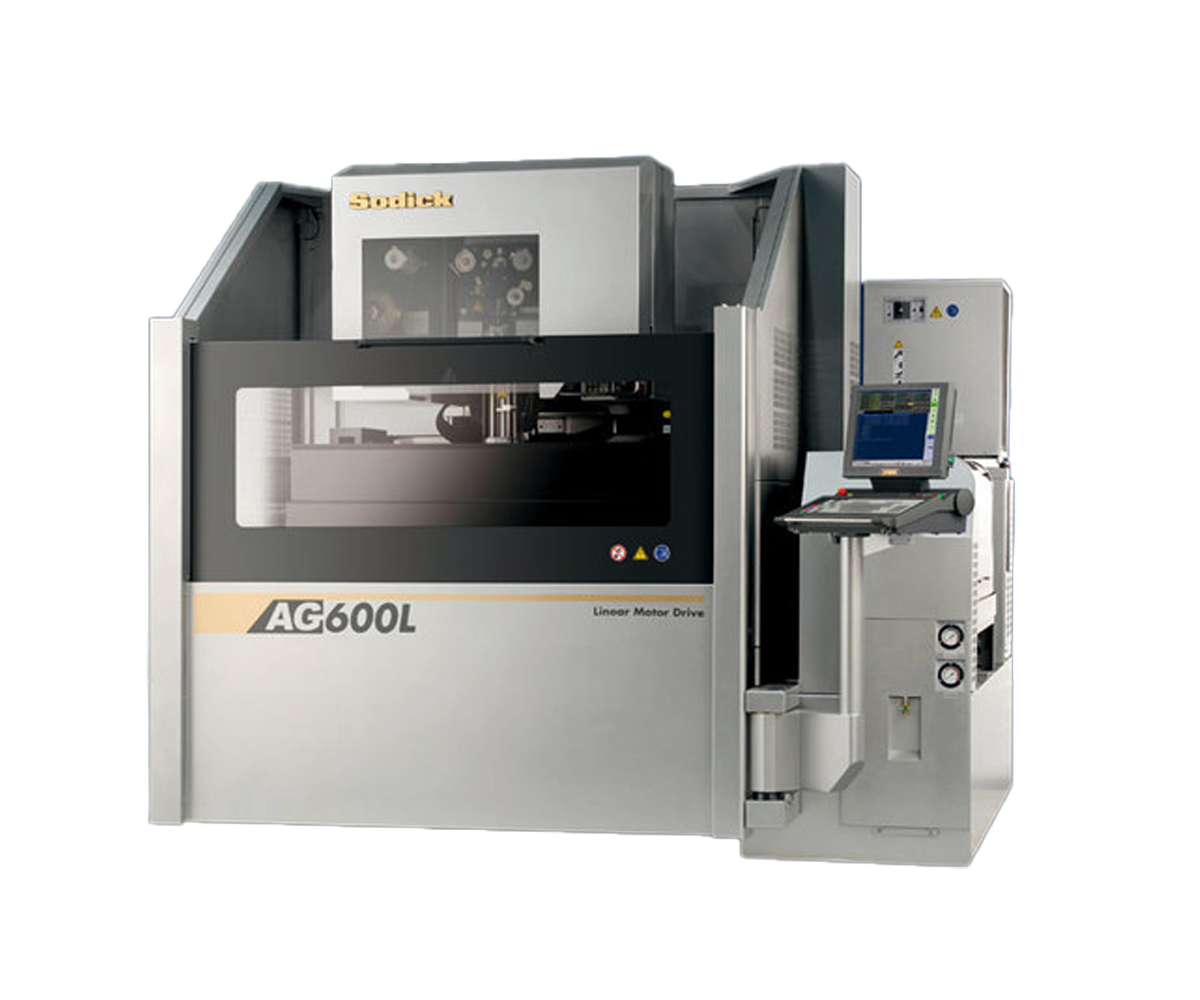

Sodick AG600L
Features
- Max. workpiece dimensions (W x D x H) 800 x 570 x 340 mm
- Max. workpiece weight 1000 kg
- Work tank size (W x D) 1050 x 710 mm
- X-/Y-/Z- axis travel 600 x 380 x 380 mm
- U axis x V axis travel 120 x120 mm
- Taper angle (workpiece thickness of 100mm) ±25° (±45° option)
- Wire diameter 0.25mm
- Wire feed speed (max) 420 mm/sec
- Automatic Wire Threading With "Super Jet AWT"
- Jumbo Feeder

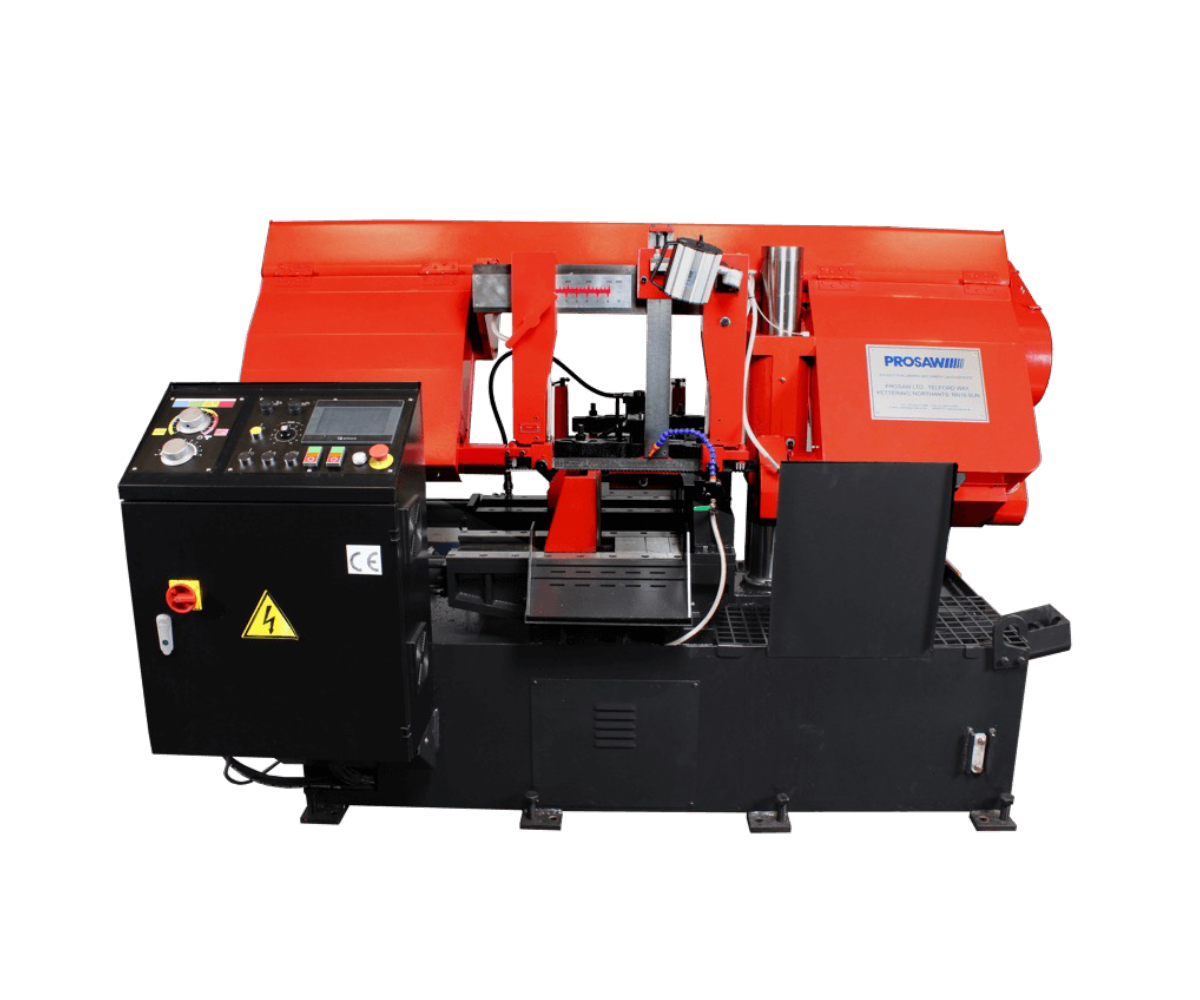

Prosaw H360NC
Vice-feed, Straight-cutting Automatic Bandsaw
Features
- Capacities: O 360, ▭ 360 x 360, Bundle 250 x 140
- Precision hydraulic down-feed control
- NC programmable controls

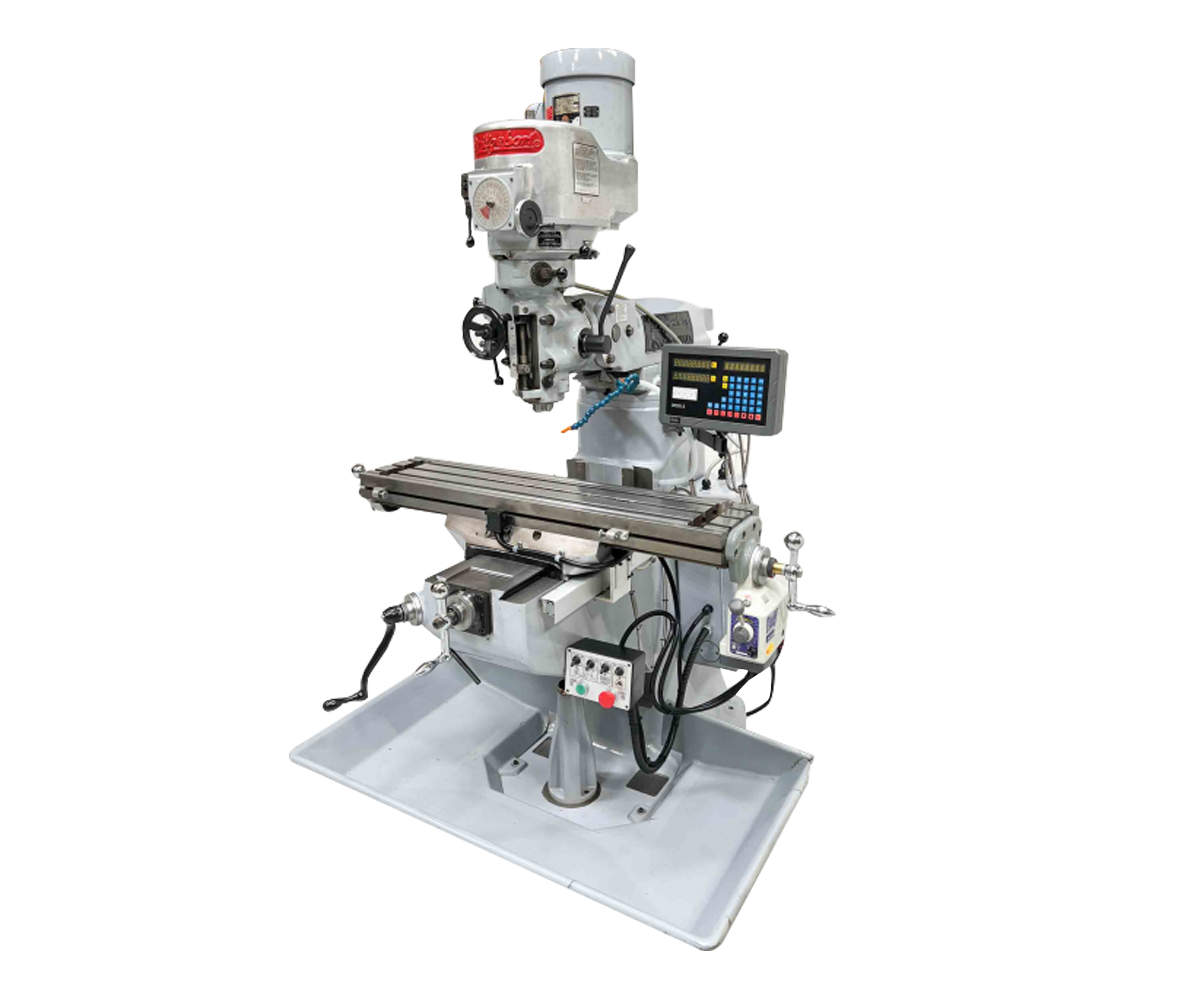

Bridgeport BR2J2 Turret Mill
Features
- VARIABLE SPEED HEAD.
- R8 TAPER.
- 42″ x 9″ TABLE.
- 2 AXIS DIGITAL DRO READ OUT

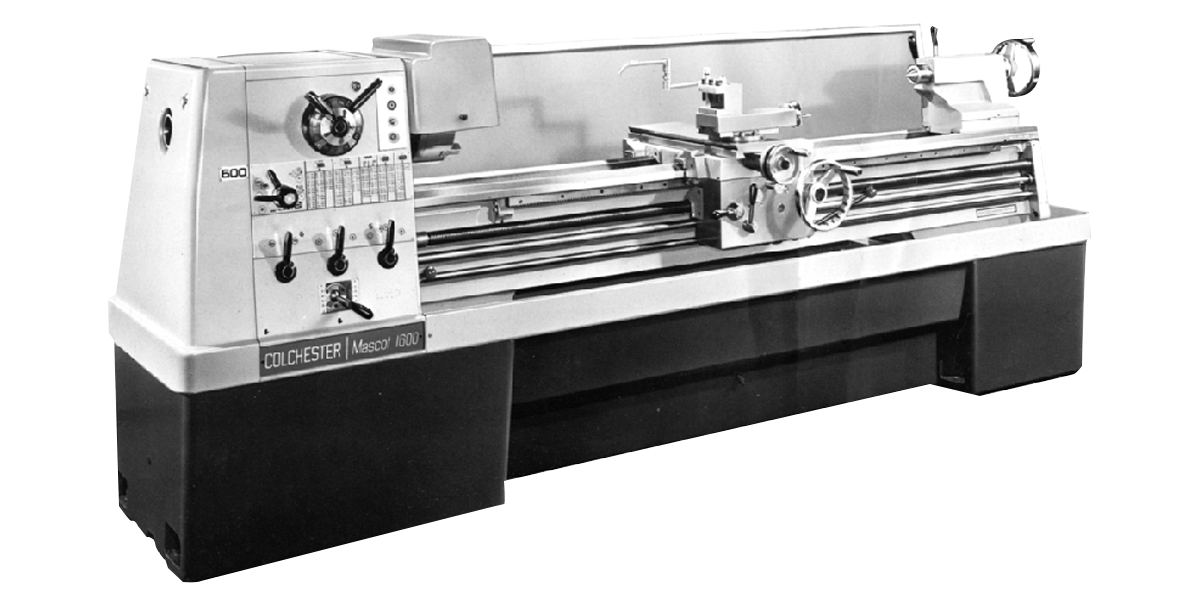

Colchester Mascot 1600 Lathe
Features
- Turning diameter over bed: 425-440 mm
- Turning diameter over slide: 267 mm
- Swing-dia. in gap: 711 mm
- Centre distance: 1.5-2 m
- Spindle bore: 76 mm
- Digital read out, 3 & 4 jaw chucks, quick change tool post

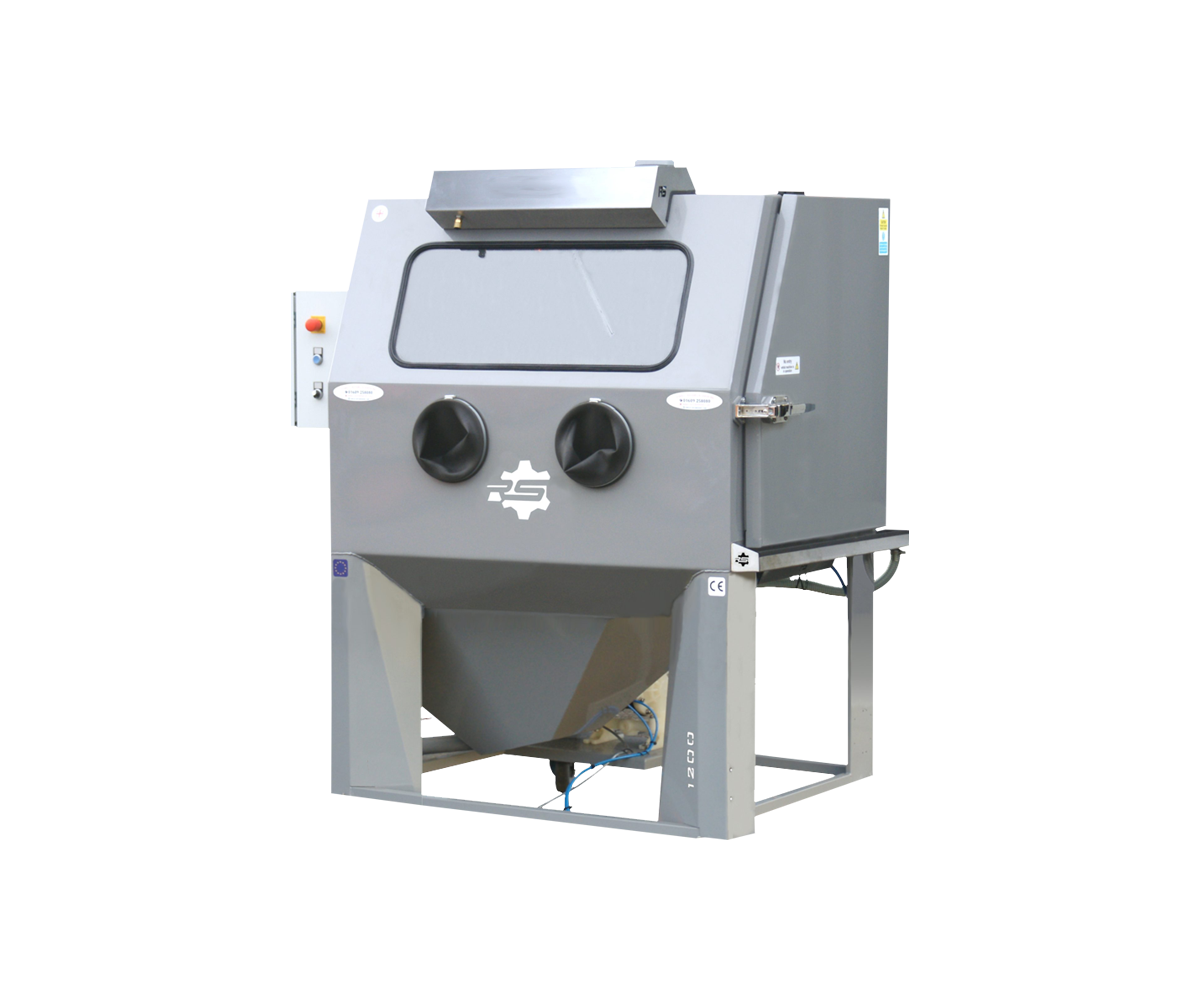

RS Pro Finishes Shot Blaster
Features
- Internal Dimensions L x W x H
- 1000mm x 1000mm x 800mm

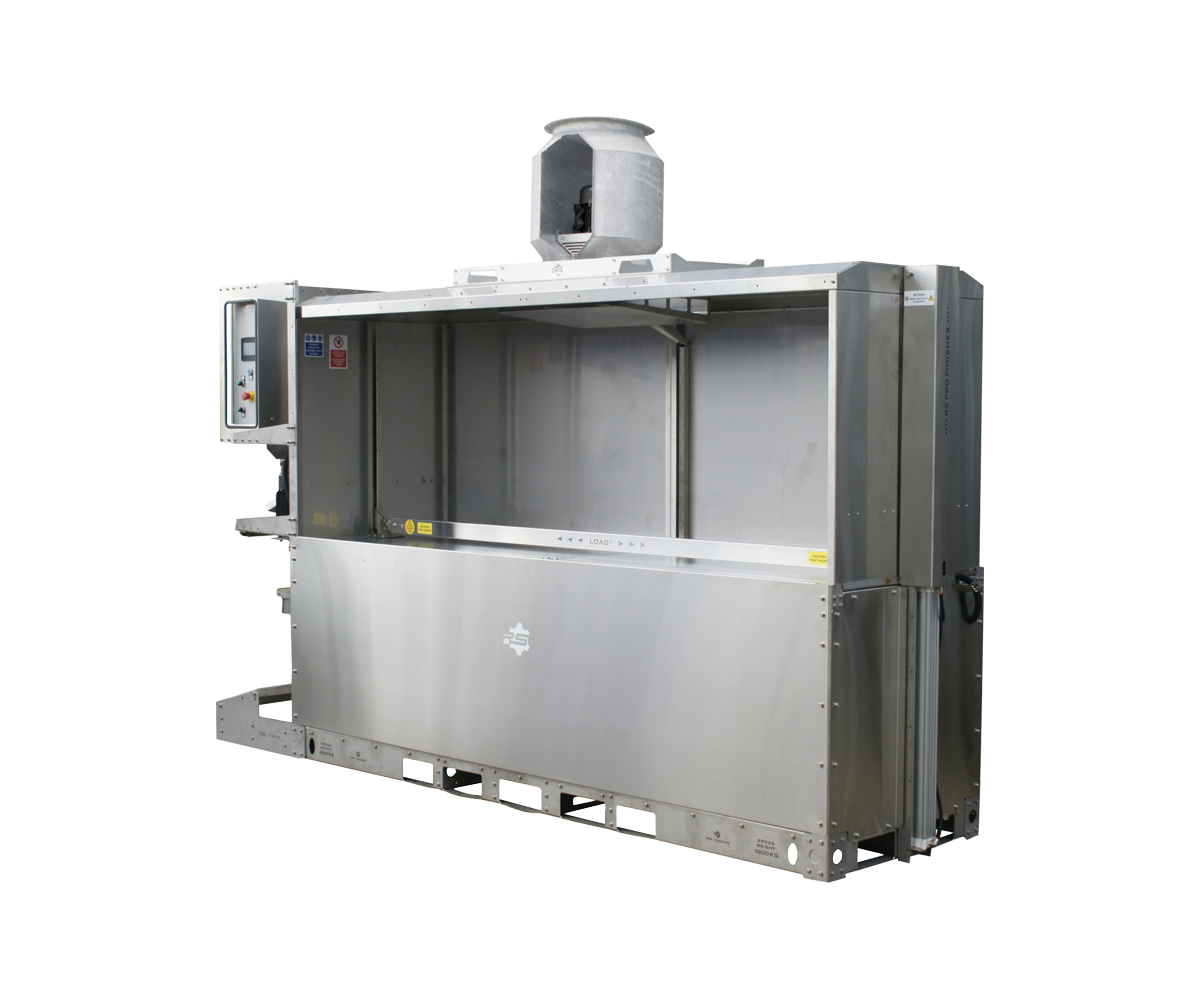

Zinc Phosphate Coating Tank
Features
- Internal Dimensions L x W x H
- 1500mm x 750mm x 500mm

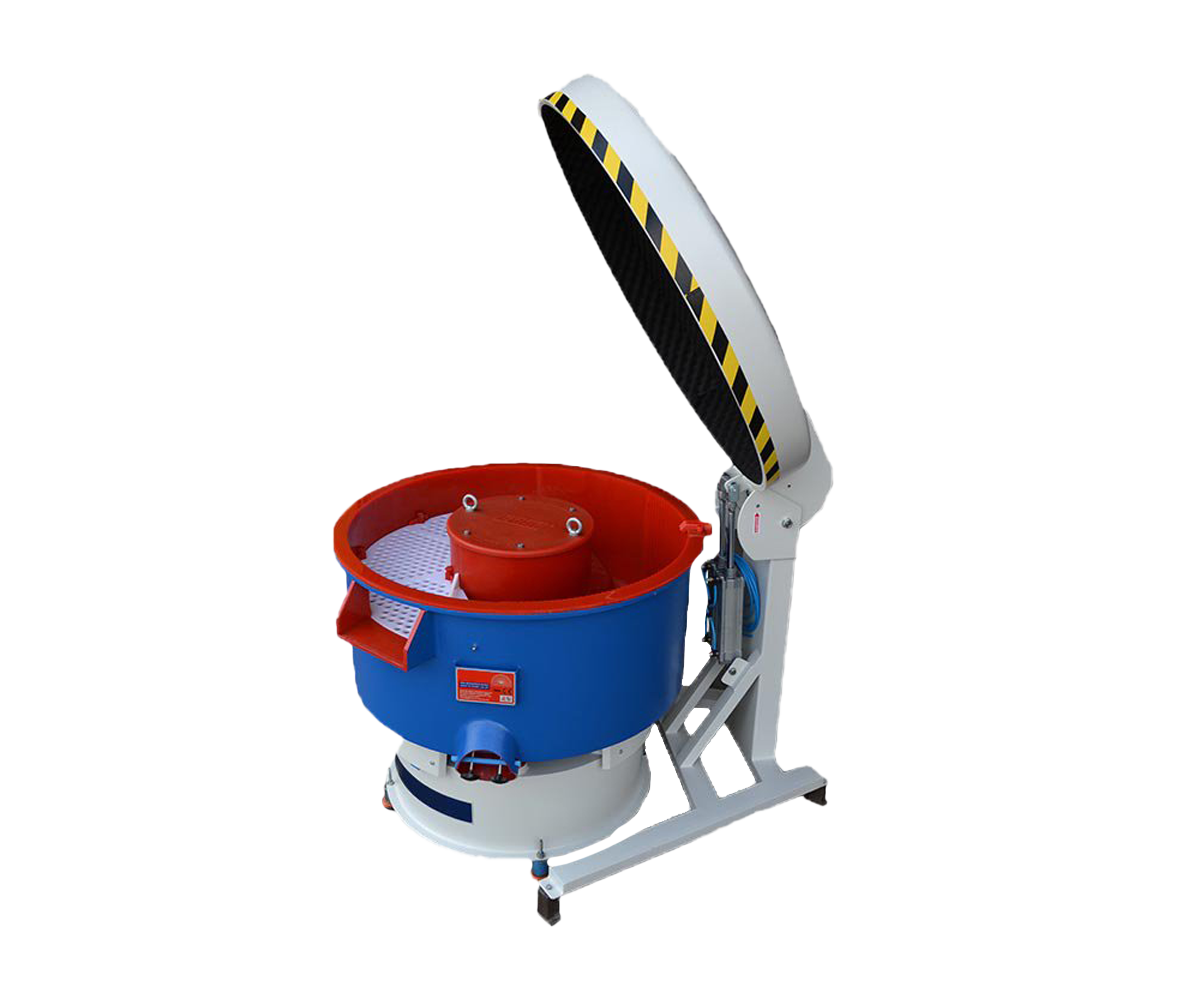

PDJ Vibro EVP-RA 550
Vibratory Bowl Finishing Machine, with parts unload. Applications include:
Features
- Deburring
- Polishing
- Edge breaking
